DEAE- cellulose chromatography column
DEAE cellulose is diethyl aminoethyl cellulose. It is a kind of anion exchanger, fibrous or granular. Its exchange groups is -O-CH2-CH2-N(C2H5)。As the column chromatography separation material, DEAE cellulose is one of the most widely used ion exchange cellulose. It is not soluble in ethanol, water, acid and dilute alkalids. It is usually used in separation of neutral and acidic proteins, polysaccharides, nucleic acids, amino acids, enzyme, plant extrat, and other substances. DEAE-L11 cellulose from Qingdao TheSure is with high stability, large adsorption capacity, fast speed, easy elution and separation ability, etc.
Also named: Diethylaminoethyl Cellulose, DEAE-52 cellulose, DEAE-cellulose 52 anion exchange chromatography, DEAE-fiber column chromatography, DEAE-52.
Molecular Formula: C20H23NO5
CAS: 9013-34-7
Specification:
Water Content: | ≤10% |
Exchange Capacity: | 1.0±0.1mmol/g |
Protein loads（BSA）： | 550-850mg/g |
Size： | 50um |
Column Bed Volume: | 9.0ml/dg (changing as per pH and pressure) |
flow velocity: | ≥280ml/hr.cm2 |
Suitable pH: | 2-9.5 |
Specification and package size can be customized as per request.
For example：6ml chromatography column
Base | DEAE cellulose |
Bffective group | -O-CH2-CH2-N(C2H5)2 |
Size | 50um |
Protein loads（BSA） | 180mg/g |
Max Flow Rate | 40ml/hr |
Max Tem | 121℃ sterilization |
Storage condition | 20%EtOH,room temperature, dry place. |
DEAE- cellulose chromatography column

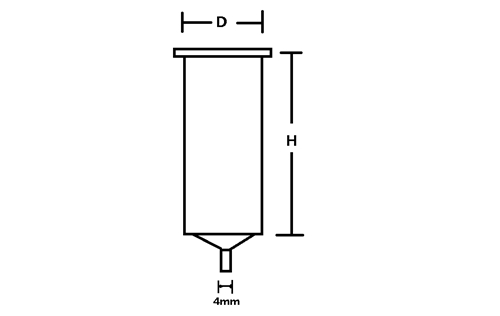

V(ml) | H(mm) | D(mm) |
1 | 5.70 | 0.55 |
3 | 6.50 | 0.90 |
6 | 6.70 | 1.26 |
12 | 7.90 | 1.55 |
20 | 9.20 | 1.90 |
30 | 10.30 | 2.20 |
